FEATURES

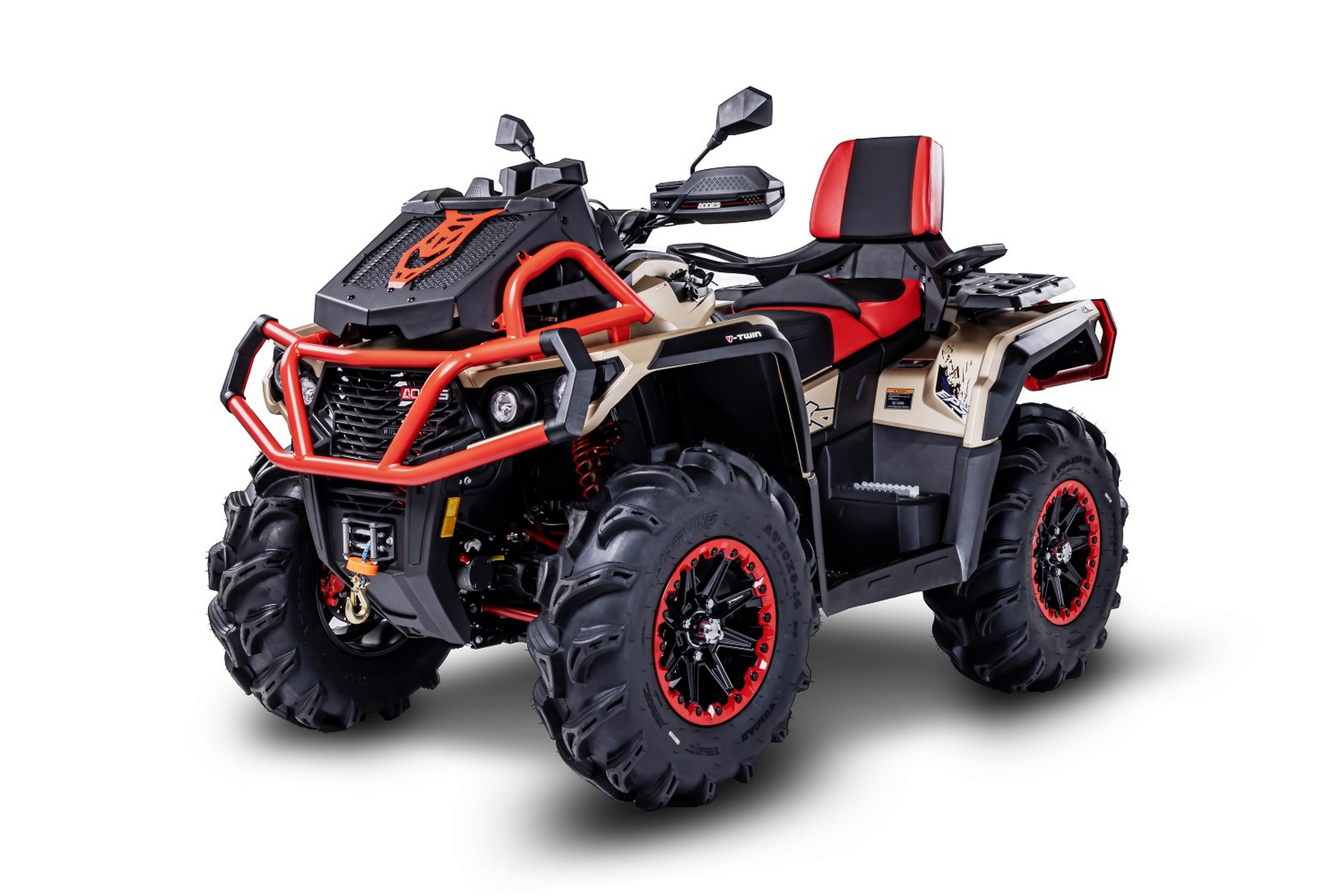

The Pathcross 1000 PRO-L is the industry’s only purpose built 2-Up MUD MONSTER. Featuring a factory installed radiator relocate and snorkel system, you can hit the deepest mud holes while allowing the 1000cc DHOC motor, and CV-Tech Clutch system to breathe without worry.
Maintain comfort and control with the independent adjustable gas coilover suspension system, mud specific tires and adjustable EPS settings. No matter what the elements throw your way, take your passenger on adventures that they will never forget and forge your own path through any terrain.
TECHNICAL DATA
- 976cc V-Twin Cylinder DHOC ● Liquid Cooled 4-Stroke ● DELPHI Electronic Fuel Injection (EFI) ● Compression Ratio: 10.5:1 ● Power: 85hp-6500RPM ● Torque: 74ft lbs-5500RPM
- CV-Tech CVT Clutch System ● Selectable L/H/N/R/P ● Selectable 2WD-4WD-4WD Front Locking Differential ● Shaft Drive
- Independent Dual A-Arm Front & Rear ● YIT 18 Way Adjustable Rebound/ Compression Gas Coil Over Reservoir Bypass Front Shocks ● YIT 18 Way Adjustable Rebound Gas Coil Over Rear Shocks ● Adjustable Coil Over Spring Rate
- 3 Mode Speed Adjustable Electric Power Steering (EPS)
- Aluminum Alloy Beadlock Wheels 30×9-R14 Front/ 30×11-R14 Rear ● 30in Mudder CST Tires ● Front/ Rear Duel Vented Disk Brakes With Hydraulic 2 Piston Callipers
- 1588kg Winch ● Synthetic Winch Rope/ Steel Winch Hook
- Overall Vehicle Dimensions: 2.44m X 1.23m X 1.4m ● Wheel Base: 1.5m ● Tire Track Width: 1.02m ● Ground Clearance: 0.27m
- Fuel Capacity: 18.2L ● Rack Capacity: 34kg front/ 68kg Rear ● Towing Capacity: 600kg ● Passenger Capacity: 2 Person With Backrest And Grab handles
- Rubber Gasket Sealed Clutch Box ● Relocated Front Rack Mounted Radiator ● Relocated Handlebar Height Clutch/ Air Intake Snorkel System ● Relocated High Rise Breathers
- LED Headlights And Taillights ● Integrated Turn Signals/ 4-Way Flashers ● 10in Multifunction Color Changing Light Bar ● Horn ● 12V Accessories Outlet ● USB Ports ● Easy To Read LED Multifunction Display
- Front/ Rear Steel Powder Coated Bumpers ● Rearview Mirrors ● Wrap Around Hand Guards
- 2in Hitch Receiver With 2in Tow Ball ● 8mm Plastic Skid Plate ● Rear Storage Compartment ● Under Seat Storage Compartment
*The price indicated does not include registration fees, taxes or the cost of freight or the installation of the accessories. Photos for illustrative purposes only. Specifications can change. Contact us for more details.
TOP FEATURES
SPECIFICATIONS
976cc V-twin, 86 horsepower, 101 N.m
Selectable 2WD-4WD , shaft drive
McPherson independent, large spring travel suspension
CST 30″ TYRES; FRONT 3500LBS WINCH
